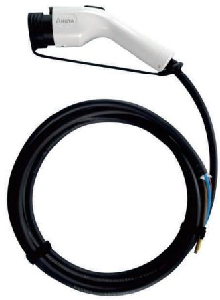

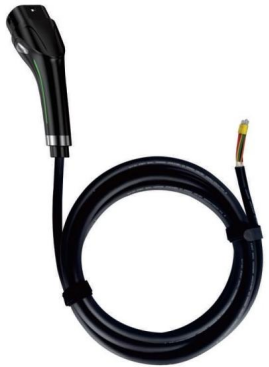

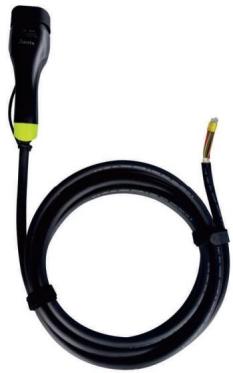

Charging Gun+Cable

→ Product Description

Model Number
GC-SAE-001-16AGC-SAE-001-32AGC-SAE-001-40AGC-SAE-001-50A
Productname
Type1EVcharger Gun+Cable
Material
Gun head House body:High temperature resistant PC+ABS
Contact part:Copper Alloy,Silver plating
Cable jacket:TPE house,UL Certified
Charging outlet type  Type1 Gun Head
Cable/Wire length
Standard 5M(Allowed customized)
Phase/Input voltage
AC120V-240V
Frequency
50/60Hz50/60Hz50/60Hz50/60Hz
Out putCurrency
16A32A40A50A
Operation Power
3.5KW7KW9.6KW12KW
Out putVoltage
AC120V~240V
Insulation resistance
>1000MQ(DC500V)>1000MQ(DC500V)>1000MQ(DC500V)>1000MQ(DC500V)
Degree of protection
IP65 Connected condition
Operate Temperature
-300~+50C
Certification
SAEJ1772;UL2594;UL62
Comply Standard
SAEJ1772;UL2594;UL62
Fire-restardant
UL94V-0UL94V-0UL94V-0UL94V-0
Coupled Insertion Force
45N~100N45N~100N45N~100N45N~100N
Mechanical life
No-load plugin/out:>times
Impact of External Force
Can stand 1M height drop and 2Tvehicle run over pressure
Packing details
1pcspack in PE bag in individualbox,then pack in external carton
